Clearspan® Cantilever Racking

Industrial warehouse shelving filled with metal pipes and construction materials, organized on blue and orange racks.

Your need:

You store long, awkward, light or very heavy items, perhaps outside, which you need quick, direct access to.

Our solution:

Clearspan Cantilever is ideal for light or very heavy, very long products, such as timber or furniture. With no front uprights to get in your way, it’s great for extra-long things that can’t be palletised. Galvanised option available for outdoors..

Vital statistics:

Column height (Depth 200mm) - 2000, 2400, 3600mm

Column height (Depth 300mm) - 3300, 4200, 4800, 6000mm

Column height (Depth 400mm) - 3300, 6000mm

Base SE & DE - 600, 900, 1200mm

Arms - 600, 900, 1200mm

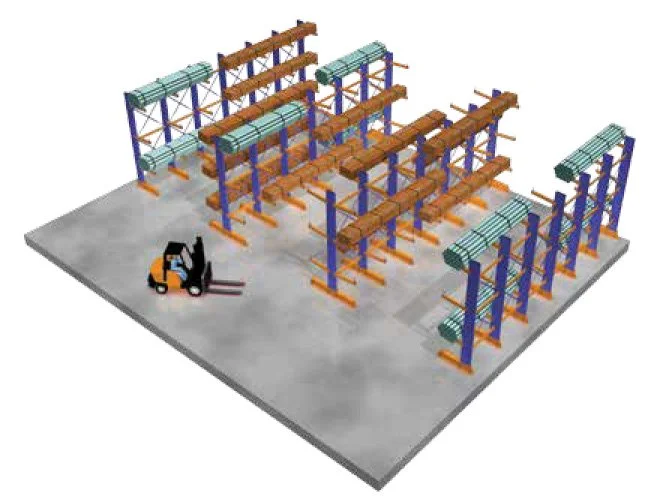

A 3D model of a warehouse racking system with multiple levels of shelves supported by blue and orange beams. A forklift is positioned near the racks on a concrete floor.

The heavy duty solution for longer items.

Close-up of a blue metal shelving unit with adjustable holes, featuring an orange safety barrier attached to it.

The columns form the backbone of the structure on which the arms are mounted. Arms are adjusted at 100mm increments.

A bright orange safety barrier arm attached to a blue and gray structure.

Optional removable spigot acts as a retaining stop for storage of loose items such as conduit or pipe.

Empty wooden shelves on a blue metal framework in a warehouse or storage area.

Clearspan Heavy Duty can be loaded using an overhead crane, side loader, or by conventional forklift truck.

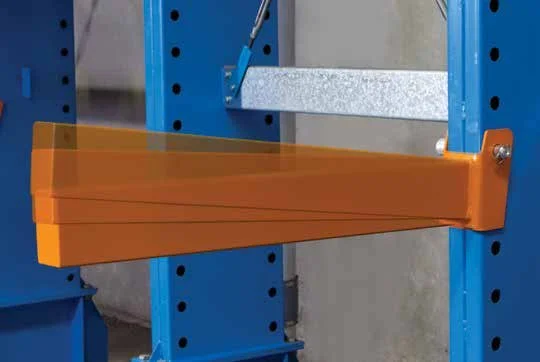

The pivoting arm design allows the arm to shift upwards if impact occurs during loading and unloading. This protects the arm above from damage and prevents structural damage to the system.

Orange weight plate stored on a blue industrial rack.

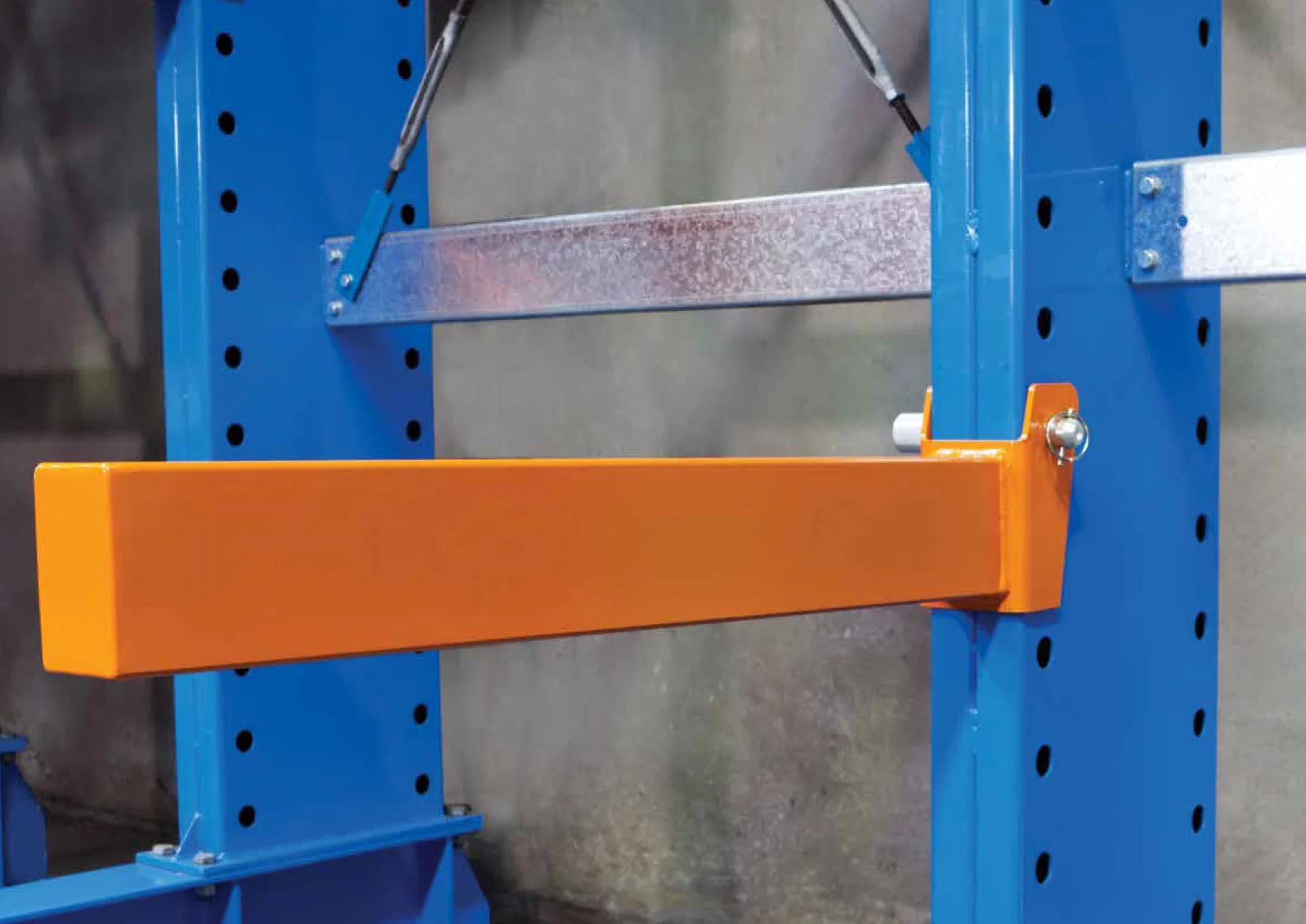

Arm locking pins are used to restrain the arm onto the column. A lynch pin is used as a safety lock to secure the arm and locking pin to the column.

Close-up of a metal bolt fastened through an orange and blue structure, possibly part of machinery or equipment.
Close-up of a metal grid on top of a yellow and blue industrial worktable or cart.

Columns are mounted to either single or double entry bases. Bases feature web stiffener plates at key points of concentrated stress. Heavy duty stud anchors provide secure floor fixing.

Close-up of a metal corner joint with screws and a glass panel.
Close-up of a blue metal structure or barrier on a concrete floor.

Hot dip galvanised components are available for use in outdoor applications.
